Series One
Model year: circa 1963 Safari (pop-riveted frame number 6335/0007??), modified.
Bottom bracket: TA
Crank: TA 5-pin 175 mm
Pedals: Union aluminium quill type
Chainwheel(s): TA "Cyclotouriste" 61T
Front mech: --
Rear mech: Rino
Brakes: Shimano "600"
Saddle pin: steel
Saddle: Ideale "92 Diagonale"
Headset: original
Stem: Ritchey steel
Handlebars: UI? "Pista" (Japanese)
Brake levers: SunTour "Cyclone"
Changer levers: SunTour bar-end + S/A original 4-speed trigger at right bend
Rims: AM standard 369's
Spokes: (F) 0x28 14G; (R) 2x28 14G
Hubs: (F) Maillard l/f; (R) Sturmey-Archer 4-speed
Tyres: AM 369 standard
Freewheel: Dave Connley 2-cog driver
Misc. features: Cut-off rear carrier tube;
Old TA steel handlebar bottle cage;
Sort of Woodburn replica...
Series One Stowaway
Model year: Circa 1966 (frame number 60847). "One of the lost
Stowaways built in 1966" according to Michael Woolf.
Mark III
Model year: circa 1973 (frame number Q771082)
Bottom bracket: Phil Woods sealed with the Raleigh threads
Crank: Shimano "Exage" 170 mm
Pedals:
Chainwheel(s): Shimano Biopace 48T
Front mech: --
Rear mech: Shimano 105
Brakes: Mathauser hydraulic
Saddle pin: Custom combination
Saddle: Brooks "Professional"
Headset: SunTour "Superbe Road"
Stem: Custom extended steel MTB type
Handlebars: Motobecane randonneur bend
Brake levers: Mathauser hydraulic
Changer levers: Shimano Exage L-angle lever + Suntour MTB flip-flop
+ S/A 3-speed trigger.
Rims: AM 369's
Spokes: 14G s/s (for children's bike) (F) 1x28; (R) 2x28
Hubs: (F) Sanshin l/f; (R) Sturmey-Archer S5 internals in
a "5-Star" steel shell.
Tyres: AM 32-369 h/p slicks
Freewheel: Dave Connley 4-cog driver
Misc. features: Sanyo Dynapower with separate high and low beam headlamps;
Front carrier supplied by Moulton Preservation;
AM mudguards;
Morgan Grips with leather h/b tapes;
Modified tri-bars;
Vertical drop-outs with wider O.L.D.

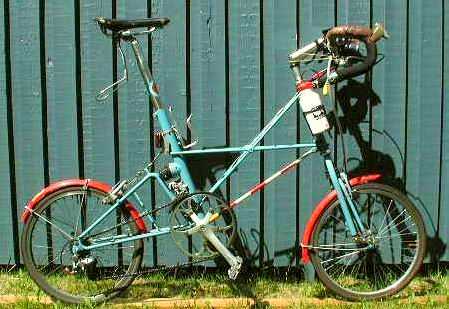

A.T.B.
Model year: 1990 (frame number AT903007)
Bottom bracket: Phil Woods sealed
Crank: Shimano "105" 175mm
Pedals: Modified WTB (SPD one side, platforms on reverse)
Chainwheel(s): TA 62T
Front mech: Locked SunTour "Sprint" as anti-whip chain-guide
Rear mech: Shimano "RSX"
Brakes: (F) Magura hydraulic; (R) Shimano Deore U-brake
Saddle pin: (original s/s with SR Laprade top)
Saddle: Brooks "Swallow"
Headset: FSA
Stem: Specialized "CrMo Team"
Handlebars: Specialized
Brake levers: Magura "Blue" + Shimano XTR, on separate bar,
with "randonneur" style extenders
Changer levers: Shimano indexed bar-ends (7-speed)
Rims: Sun Mistral CR18 (406-16)
Spokes: DT Champion s/s 14G (F) 1x36 twisted; (R) 2x36
Hubs: Shimano "105"
Tyres: Continental "Grand Prix" 28-406
Freewheel: Freehub cassette 11-12-13-15-17-19-24
Misc. features: Saddlebag uplift;
NightSun 12V 21+5W 2-lamp battery lighting system;
Bluemels narrow mudguards (re-shaped);
Blackburn bottle cages;
Mirrycle.
